Floating Binoculars
Floating Binoculars
- High light transmission and clear imaging, using high-grade Porro prism lenses.
- Extra-large light intake brightness, allowing clear observation even at night in environments with street lighting.
- Clear viewing of targets at any distance without the need for focusing.
- Fully submersible waterproof design (IP67) and able to float on the water surface, suitable for seaside and marine observation activities.

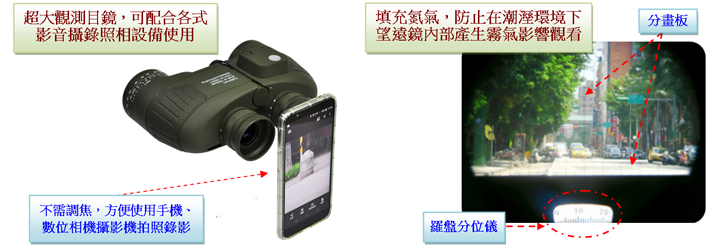

- Large-diameter eyepieces can be directly connected to digital video cameras using adapter rings.
- Built-in rangefinding reticle, compass scale, and auxiliary night illumination light source.

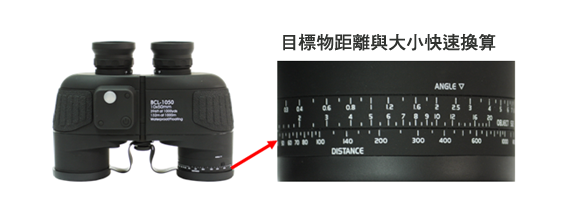

- The surface of the binocular body includes a conversion scale for angle, object size, and distance, allowing direct estimation of the observed target’s distance.
RAYSUN BCL-1050
Floating Binoculars / Boating Binoculars
⚠️ Product Features:
- This product has passed IP67 dustproof and waterproof testing, and can float without sinking even if dropped into water.
- Built-in compass and rangefinding scale, with illumination function at night, suitable for all-weather marine navigation use.
- Nitrogen-filled interior with anti-fog treatment, suitable for harsh environments with various temperature changes.
Catalog Download
Word Catalog Download
PDF Catalog DownloadTechnical Specifications
Model
RAYSUN BCL-1050
Magnification
10X
Objective Lens Diameter
50 mm
Field of View Angle
7.5° (132m / 1000m)
Eye Relief
22 mm (comfortable viewing distance)
Interpupillary Distance
56 ~ 72 mm
Exit Pupil Diameter
7.1 mm
Resolution (Center)
≤ 5"
Minimum Focusing Distance
5 m
Lens Coating
Fully multi-coated (FMC), true-to-life color reproduction
Prism Material
BAK-4
Waterproof Performance
IP67 fully submersible waterproof / nitrogen-filled anti-fog
Built-In Functions
Rangefinding reticle scale, compass scale, auxiliary illumination
Diopter Adjustment
-5 ~ +5
Dimensions
187(L) x 80(W) x 145(H) mm (±5mm)
Weight
≤ 0.9 Kg
Application Method

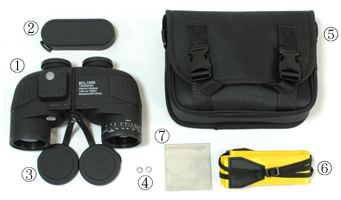

Standard Package Contents
- BCL-1050 binoculars main unit x 1
- Eyepiece dust cover
- Objective lens dust cover
- Illumination battery
- Dedicated carrying bag
- Floating strap, prevents sinking if dropped into water
- Lens cleaning cloth
